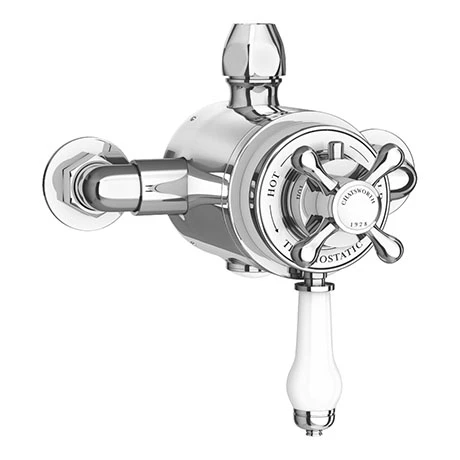

Chatsworth 1928 Traditional Dual Exposed Thermostatic Shower Valve

Chatsworth 1928 Traditional Dual Exposed Thermostatic Shower Valve

The Chatsworth 1928 traditional dual exposed thermostatic shower valve with stylish ceramic control dial offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.

To be used with a slider rail or rigid riser kit, this valve has the added safety benefit of a built in anti-scald device should the cold water supply fail. The traditional style of this exposed shower valve adds a touch of sophistication and elegance in any bathroom.

Product Details

• Projection: 142mm
• Height: 178mm
• Type: Dual Exposed Shower Valve
• Range: Chatsworth 1928
• Colour/Finish: White/Chrome
• Manufactured from solid brass
• Smooth Operation with Quality Components
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 1
• Standards EN200 and/or WRc/NSF
• Anti-scald technology
• Classic body with traditional lever and cross head handles
• Suitable for modern pressurised plumbing systems.
• 150mm between pipe inlet centres
• No diverter
• Outlet: 15 mm (1/2″ BSP)
• Flow rate of twin concealed valve::
• 0.5 bar-9.5L/M
• 1 bar-15.5L/M
• 2 bar-20L/M
• 3 bar-24L/M
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images are for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
