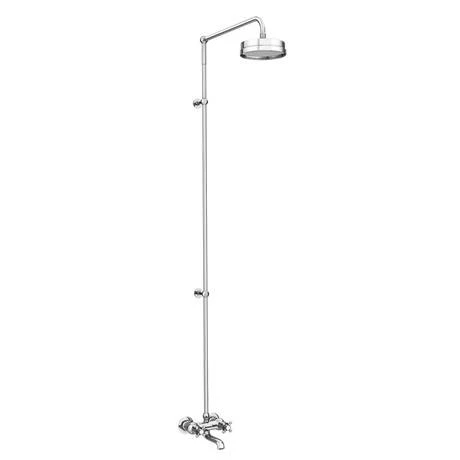

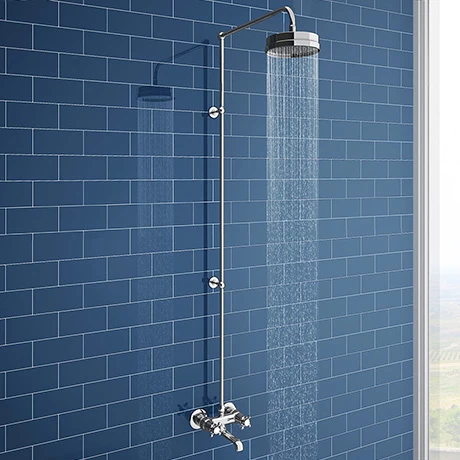

Chatsworth Thermostatic Shower Bar Valve With Rigid Riser & Bath Tap

Chatsworth Thermostatic Shower Bar Valve with Rigid Riser & Bath Spout

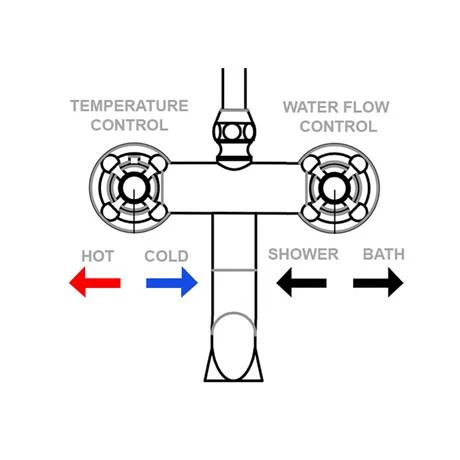

A traditional thermostatic shower featuring a classic circular design, the Chatsworth 2 outlet shower offers thermostatic showering via two easy-to-operate controls for temperature and flow. This elegant thermostatic exposed bar valve with riser kit will compliment any traditional bathroom suite. Features a luxurious rainfall shower head and bath spout.

Product Details

• Height: 1840mm
• Projection: 600mm
• Shower Head Size: 200mm Diameter
• Finish: Chrome Plated
• Product Type: Traditional
• Shape: Round
• Handles: Crosshead
• 2 Outlet
• Supply: Suitable for all plumbing systems
• Rainfall effect traditional Shower head
• Wall mounted
• Attractive ball joints
• Durable solid brass construction
• 150mm between pipe inlet centres
• 18mm Riser Pipe
• With Bath Spout
• Working pressure between 0.5 to 5.0 bar
• Pipe Size: 15 mm (1/2″ BSP)
• Please note: Rigid riser can be trimmed down for height adjustment, but this does void the warranty.
• Hot water temperature 55 to 85 Degrees
  Should a pump be required we recommend a universal or negative head pump

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Product image for illustration purposes only

All measurements are approximate

Comprises

(1) Thermostatic Exposed Shower Bar Valve
(1) Rigid Riser with Round Fixed Head
(1) Bath Spout

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
