Chatsworth Traditional Crosshead Top Outlet Thermostatic Bar Shower Valve Inc. Rigid Riser Kit

Chatsworth Traditional Crosshead Top Outlet Thermostatic Bar Shower Valve inc. Rigid Riser Kit

The Chatsworth exposed thermostatic bar valve with chrome rigid riser kit is part of our traditional collection of bathroom products. Classic styling with a chrome finish and constructed from solid brass, the Chatsworth bar valve has two cross-head tap head controls with classic white indices, one controls the flow and the other controls the temperature. Featuring the latest anti-scald technology, the valve is pre-set to a safe and optimal 38°C, this can be easily offset by holding down the safety push and click button on the handle.

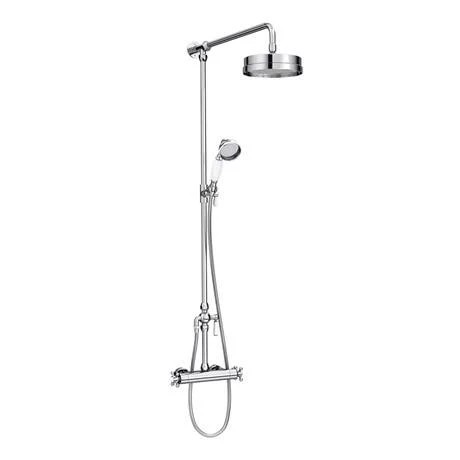

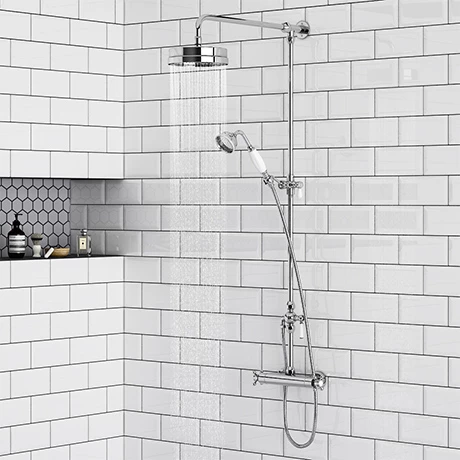

The Chatsworth traditional luxury chrome rigid riser kit features a traditional design which integrates seamlessly into any classic or traditional styled bathroom. Comes with a built-in diverter so you can switch between the fixed head or hand held shower. For total flexibility, complete the look of your bathroom with a designer rigid riser shower kit. All kits comprise of exposed pipe work including a sliding rail, shower hose and shower head.

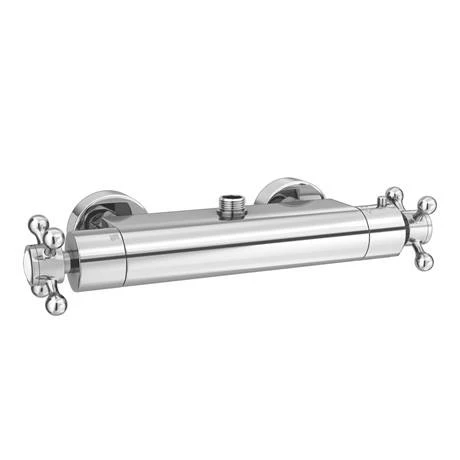

Shower Bar Valve Details

• Width: 304mm
• Depth: 100mm
• Height: 40mm
• Colour/Finish: Polished Chrome
• Material: Solid Brass Internals
• Style: Traditional
• Type: Bar Shower Valve
• Handles: Cross-head
• Ceramic White Indices
• Surface / Wall Mounted
• Top Outlet
• Thermostatic shower control valve for comfort and safety
• Built-in anti-scald device
• Separate controls for temperature and flow
• Easy installation
• Factory pre-set temperature 38°
• Durable and dependable
• 150mm between pipe inlet centres
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 15 mm (1/2″ BSP)
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.

Rigid Riser Kit Details

• Height: 1230mm
• Projection: 516mm
• Diameter of the main shower head is 8″
• Traditional Design
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Ceramic handle detail
• Built-in diverter
• Includes sliding rail, shower hose and shower head.
• Minimum 0.5 Bar Pressure Required
• Manufactured to the Highest Standards
• Smooth Operation with Quality Components

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

Comprises

(1) Traditional Luxury Rigid Riser Kit with Diverter – Chrome
(1) Traditional Crosshead Top Outlet Thermostatic Bar Shower Valve – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
